Load carrier and load
The load carrier’s design, dimensions and condition, plus the load’s weight and centre of gravity.
Pallet handling AGV

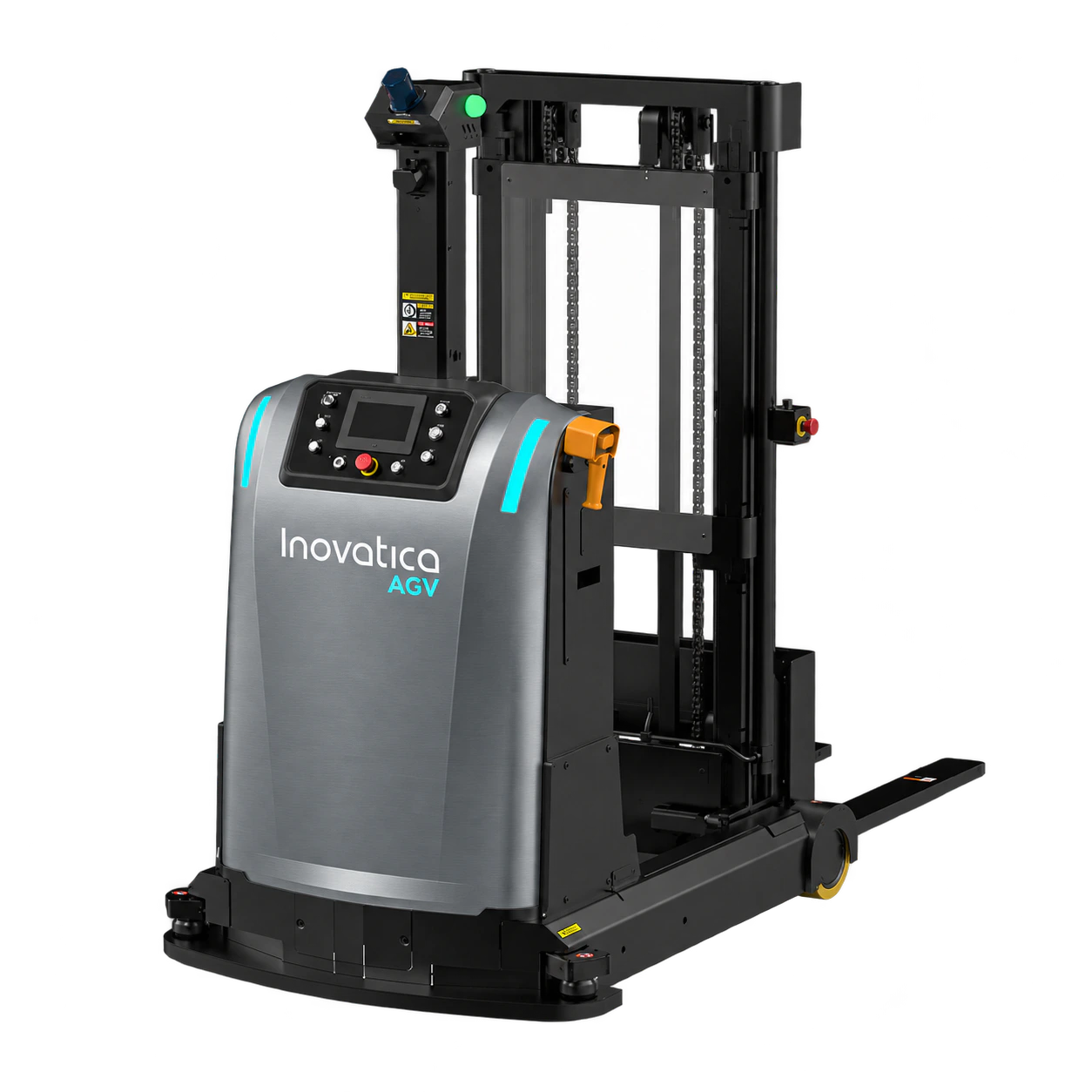

LA-1430 — AGV reach truck
1 / 3 LA-1430 · 3D modelDrag to rotate · pinch to zoom
Loading 3D model… Matched to your process
What should you check before selecting a robot?
Routes and workstations
Passage widths, pickup and placement geometry, and traffic inside the facility.
Schedule and integration
The number of transport tasks, available charging periods and how tasks are requested.
Information needed to select your robot
LA-1430 technical specifications
Load and operation
| Product name | LA-1430 AGV reach truck (with retractable mast) |
|---|---|
| Operating mode | Automatic navigation / manual control device |
| Pallet type | Open pallet / closed pallet |
| Rated load capacity | 1400 kg |
| Load centre distance | 500 mm |
| Standard lifting height | 3000 mm |
| Travel speed (laden / unladen) | 1.2 / 1.5 m/s |
| Cage storage | Optional |
| Pallet storage | Optional |
| Safety bumper | Standard |
Dimensions and site conditions
| Weight (including battery) | 1890 kg |
|---|---|
| Truck dimensions (L × W × H) | 2190 × 1192 × 2228 mm |
| Fork dimensions (L × W × H) | 1220 × 122 × 40 mm |
| Outer fork width | 400–700 mm (adjustable) |
| Minimum turning radius | 1482 mm |
| Temperature and humidity range | TEMP: 0°C to 50°C / RH: 10% to 90%, non-condensing |
| Floor conditions (gradient / step / gap) | <3% / 10 mm / 30 mm |
| Right-angle stacking aisle width, 1000 × 1200 pallet (1200 along forks) | 2260+200 mm |
| Right-angle stacking aisle width, 800 × 1200 pallet (1200 along forks) | 2220+200 mm |
Navigation and safety
| Navigation type | Laser SLAM |
|---|---|
| Navigation positioning accuracy | ±10 mm |
| Navigation angle accuracy | ±0.5° |
| Number of lidars | 1 (P+F R2000) + 3 (OLEI LR-1BS2H) |
| Wi-Fi roaming | Standard |
| 3D obstacle avoidance | Standard |
| Pallet recognition | Optional |
| HMI display | Standard |
| Emergency stop button (E-stop) | Standard |
| Audible and visual signals | Standard |
| Braking distance (1 m/s / 1.5 m/s) | ≤50 cm / ≤72 cm |
| 360° laser protection | Standard |
| Fork height protection | Standard |
| UN38.3 | Standard |
Battery and charging
| Battery specification | 24 V / 180 Ah (lithium iron phosphate) |
|---|---|
| Battery runtime | 10 h |
| Charging time (10% to 80%) | 2 h |
| Charging method | Manual / Automatic |
| High-bay pallet recognition | Optional |
Configuration and dimension notes
The side view shows the forks lowered. Maximum lift is shown separately. The 3D model shows the mast extended. Confirm length and height before designing the workstation: nominal dimensions 2190 × 1192 × 2228 mm; drawing labels: length 2162 mm, height 2190 mm.
Before choosing LA-1430
How much does deploying LA-1430 cost?
The budget includes vehicles, process integration, software, infrastructure preparation and support. A quotation requires information about load carriers, routes and throughput. What affects AGV pricing?
How do you assess whether this robot suits your facility?
Start with a description of your transport tasks and load carriers. Together, we will define the requirements for workstations, routes, safety and integration. Describe your process
