Load carrier and load
The load carrier’s design, dimensions and condition, plus the load’s weight and centre of gravity.
Pallet handling AGV

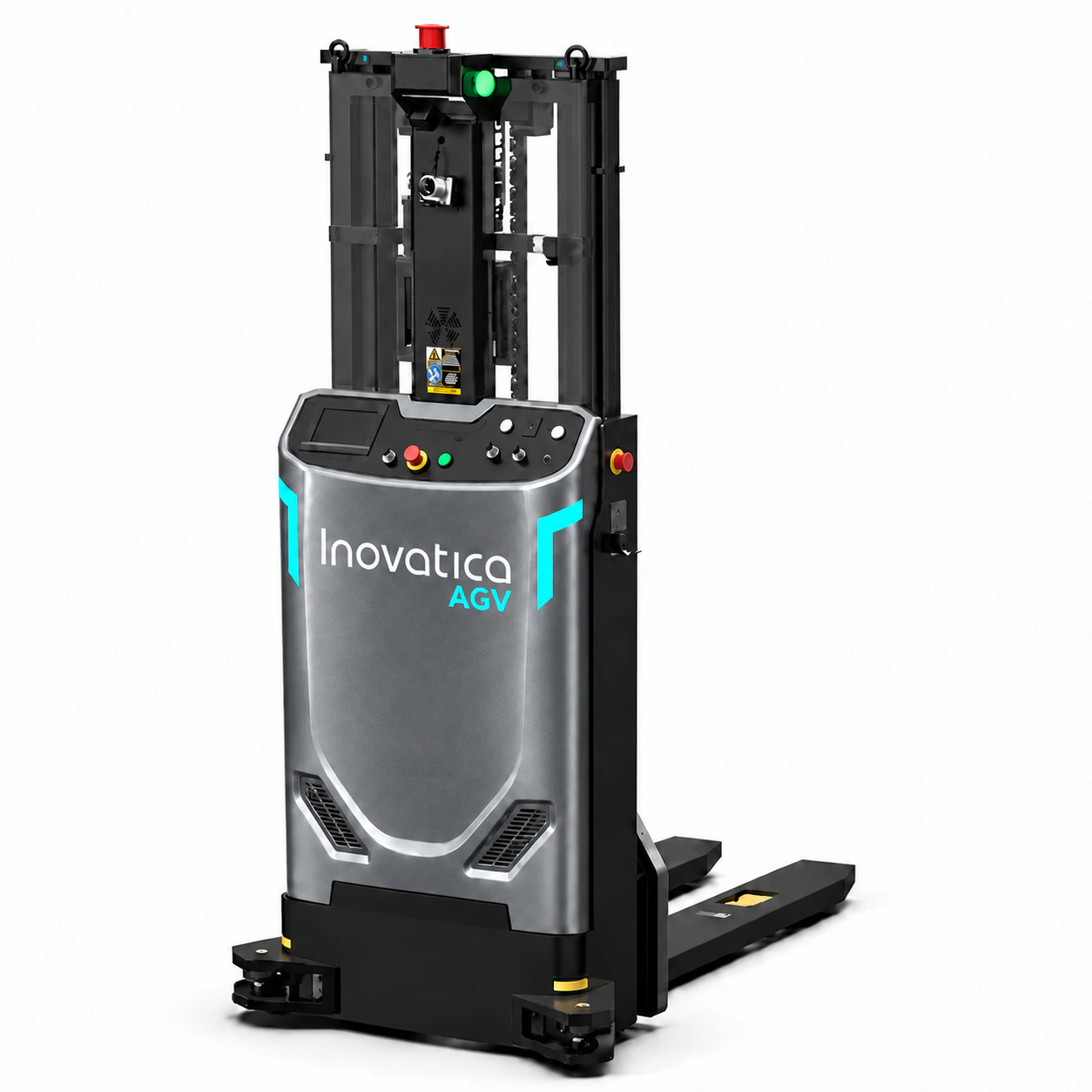

ST-1450 — AGV stacker
1 / 3 Matched to your process
What should you check before selecting a robot?
Routes and workstations
Passage widths, pickup and placement geometry, and traffic inside the facility.
Schedule and integration
The number of transport tasks, available charging periods and how tasks are requested.
Information needed to select your robot
ST-1450 technical specifications
Load and operation
| Product name | Autonomous forklift |
|---|---|
| Operating mode | Automatic navigation |
| Pallet type | Open pallet |
| Rated load capacity | 2000 kg |
| Load centre distance | 600 mm |
| Standard lifting height | 5000 mm |
| Travel speed (laden / unladen) | 1.0 / 1.5 m/s |
| Cage storage [3] | Optional |
| Pallet storage [5] | Optional |
Dimensions and site conditions
| Weight (including battery) | 1175 kg |
|---|---|
| Truck dimensions (L × W × H) | 1724 x 1039 x 1994 mm |
| Fork dimensions (L × W × H) | 1220 x 180 x 60 mm |
| Outer fork width | 555 / 600 / 680 mm |
| Minimum turning radius | 1337 mm |
| Temperature and humidity range | TEMP: 0°C to 50°C / RH: 10% to 90%, non-condensing |
| Floor conditions (gradient / step / gap) | <5% / 10 mm / 30 mm |
| Right-angle stacking aisle width, 1000 × 1200 pallet (1200 along forks) | 2003 + 300 mm |
| Right-angle stacking aisle width, 800 × 1200 pallet (1200 along forks) | 1932 + 300 mm |
| Right-angle stacking aisle width, 1000 × 1000 pallet (1000 along forks) | 1892 + 300 mm |
Navigation and safety
| Navigation type | Laser SLAM |
|---|---|
| Navigation positioning accuracy | ±10 mm |
| Navigation angle accuracy | ±1° |
| Number of lidars | 1 (3D) + 2 (SICK HV) + 1 (C200) / 1 (P+F R2000) + 2 (SICK HV) + 1 (C200) |
| Wi-Fi roaming | Standard |
| 3D obstacle avoidance | Standard |
| Pallet recognition | Standard |
| HMI display | Standard |
| Emergency stop button (E-stop) | Standard |
| Audible and visual signals | Standard |
| Braking distance (1 m/s / 1.5 m/s) | ≤30 cm / ≤50 cm |
| 360° laser protection | Standard |
| Fork height protection | Standard |
| ISO 3691-4 | Standard |
| EMC | Standard |
| UN38.3 | Standard |
| RED | Standard |
Battery and charging
| Battery specification | 24 V / 210 Ah (lithium iron phosphate) |
|---|---|
| Battery runtime | 10 h |
| Charging time (10% to 80%) | 2 h to 2.5 h |
| Charging method | Manual / Automatic |
| High-bay pallet recognition [3] | Optional |
Configuration and dimension notes

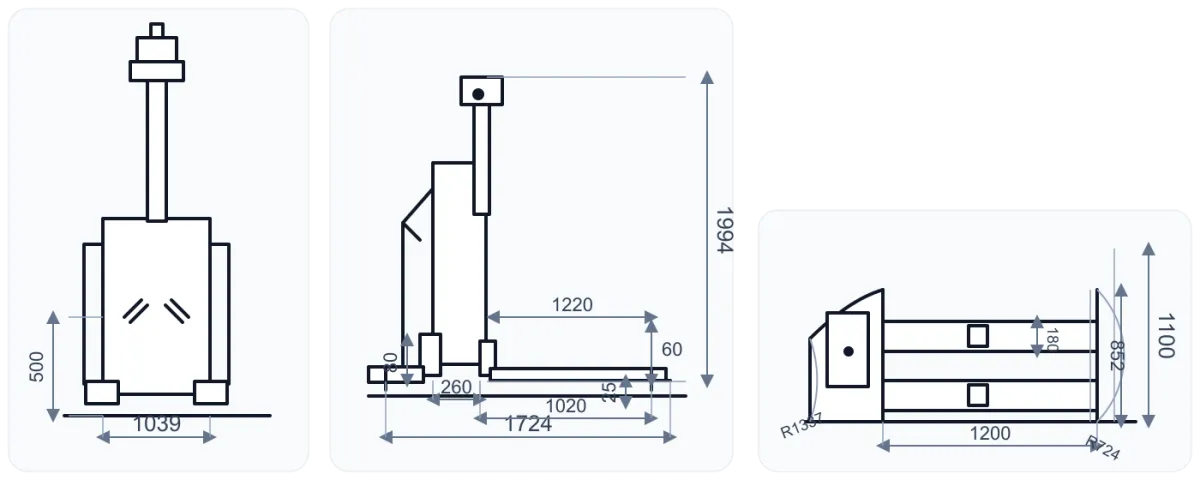

The diagram shows overall dimensions with the forks lowered. Confirm the lifting height and dimensions of the ordered mast during selection.
Before choosing ST-1450
How much does deploying ST-1450 cost?
The budget includes vehicles, process integration, software, infrastructure preparation and support. A quotation requires information about load carriers, routes and throughput. What affects AGV pricing?
How do you assess whether this robot suits your facility?
Start with a description of your transport tasks and load carriers. Together, we will define the requirements for workstations, routes, safety and integration. Describe your process
